ProAttach II ..A

A ProAttach II Kit makes it possible to attach a Warmoth Pro-Construction Side Adjust Neck
 to a Fender Contour Heel Body or to a modified body. The Contour Heel Project below began with a

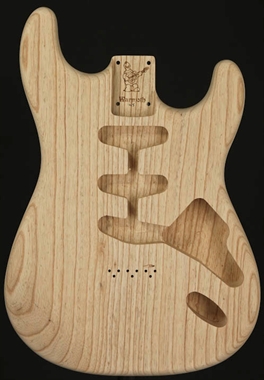

 Warmoth 4 lb. 5 oz. Ash Hardtail Body and a 22 Fret Pro Construction Quartersawn Goncalo SRV Neck.




..


..
1) Contour Heel Layout. 2) Installing glued spruce dowel short of pocket surface.
3) Hand finished contour heel; note black dot for drilling.


.


.
1) Checking insert screw protrusion and preparing to trace rail outline.
The supplied machine screw aligns the rail for tracing.

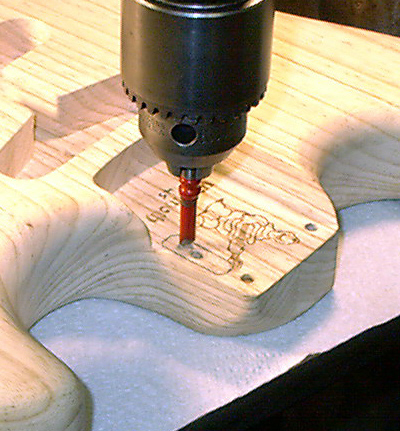

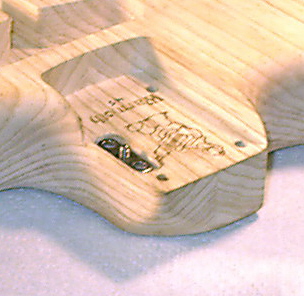

2) Plunge drilling shallow holes for the rail recess followed by cleanup with a sharp chisel.
Inserts are optional and not required.



..


 ..
1) Below testing the rail depth below pocket surface.

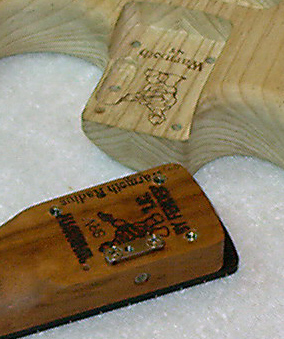

2) Inserts installed and rail mounted on heel ready for assembly.


..


..

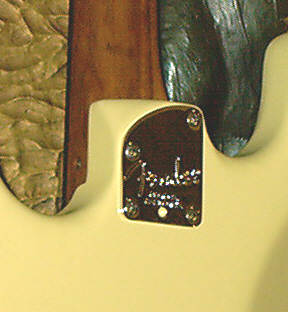

The Installed Neck Is Rock Solid.



..


  ..
    No Longer An...


..


..
 Awesome...

Pro Contour Heel…
http://www.unofficialwarmoth.com/index.php?topic=18052.msg266811#msg266811

Pro Contour Heel In Progress…
http://www.unofficialwarmoth.com/index.php?topic=16118.msg240926#msg240926

Strat Makeover…

http://www.unofficialwarmoth.com/index.php?topic=18544.0
..


..
Includes: Rail, Mounting Screws, Machine Screw, Dowel, Instructions And Priority Shipping.

Installation requires skills and tools necessary for working on guitars and
  experience with Strat and Tele setup procedures and Warmoth neck particulars.



$23.95

Currently Out Of Stock
